Ошибка P0341 Лачетти 1.4/1.6

Ошибка p0341 – ошибка p0341 – ошибка датчика положения распредвала. сигнализирует о том, что датчик положения распредвала выдает неверный сигнал.

Causes

A code P0341 may mean that one or more of the following has happened:

• Cam sensor wiring routed too close to spark plug wiring (causing interference)
• Poor wiring connection at cam sensor
• Poor wiring connection at PCM
• Bad cam sensor
• Damaged reluctor wheel

Need more help with a p0341 code?

If you still need help regarding the P0341 trouble code, please post
your question in our FREE car repair forums.

NOTE: This information is presented for information purposes only.
It is not intended as repair advice and we are not responsible for any actions
you take on any vehicle. All information on this site is copyright protected.

Obd-ii trouble code technical description

Camshaft Position Sensor Circuit Range/Performance

Obdii коды для автомобилей. расшифровка значения кода диагностики p0341. причины появления ошибки p0341

Possible solutions

NOTE: In some cases this engine code is generated on vehicles that do not actually have a camshaft position sensor. In those cases it basically means the engine is misfiring badly due to faulty spark plugs, spark plug wires, and often coils.

Often relacing the sensor fixes this code, but not necessarily. Therefore it’s
important to check the following:

• Check that the wiring isn’t routed too close to any secondary ignition components
  (coil, spark plug wires, etc.)
• Visually inspect the wiring at the sensor for any burn marks, discoloration
  indicative of melting or chafing
• Visually inspect the cam sensor for damage
• Visually inspect the reluctor wheel through the cam sensor port (if possible)
  for any missing teeth or any damage
• If reluctor isn’t visible from outside the engine, visual test can only
  be done by removing cam shaft or intake manifold (depending on engine design)
• If all checks out okay, then replace the sensor.

Related Camshaft Trouble Codes: P0340, P0342, P0343, P0345, P0347, P0348, P0349, P0365, P0366, P0367, P0368, P0369, P0390, P0391, P0392, P0393, P0394.

Related dtc discussions

• 2004 Monte, No Cam signal, Code P0341 but starts and runs…
  Long story short the cam sensor wires were pinched and shorted by the power steering pump on a 3.4L. The car would not start and there were no trouble codes. Finally I notice no cam signal on the scanner so I started to dig. I found the cam sensor wires to be shorted out. I repaired the wires. Still…
• big problem P0341
  hi i have big problem. i have mercedes A150 07″ the car i have changed the camshaft sensor is new. remains the problem and the car stop engine and start after without any problem, shows the code P0341 very rare. the car now is stop engine 6-15 times a day. the mercedes his told that it may be bas…
• p0341 cam sensors vs O2 sensors
  I have a 97 camaro with the 3.8 ltr. I recently have had codes for the egr, maf, and cam sensor code 341. I changed out the egr, maf, and cam sensor. The egr and maf codes are gone, but the cam code 341 still comes back after about 5-8 miles when the car stumbles and gags, it then recovers for a sho…
• 2005 Toyota Camry P0341
  My Camry dies after 20 minutes of driving and then has to sit for a half hour or so before it can start up again. I took it to a mechanic and they replaced the camshaft position sensor and the same thing kept happening, so I borrowed a code reader from a friend and got the same code P0341 camshaft p…
• 2005 Ceitroen C4 anti pollution fault P0341
  hi I have citroen c4 1.6SX automatic 2005. The engine light is on. problem is car starts fine (cold start) but when I drive for a while and park and come back to start it again it does not start all I hear is a click sound. after waiting for half an hour it does start and drives fine. and again when…
• P0341, P0442, P0404. 2000 Saturn SL2
  I had these 3 codes come up when my check engine light came on (P0341 (cam shaft position sensor), P0442 (evap leak), P0404 (Es? valve *i cant read the gentleman’s handwriting on that one*). 2000 Saturn SL2) i recently purchased this used car from a college friend of my girlfriend as she was moving…
• p0341 on vw cabrio
  i have a 96 vw cabrio the code p0341 it says cam position sensor . but everone says my car dose not have one ,cant find it in the book . help please TIA (need to get to work) thanks…
• 2001 Chev Impala P0341, P0442, P0452 But Not the Problem?
  Hi, I’ve got an ’01 Impala, 3800 with 150K miles that basically runs fine. I have these three codes: P0341, P0442, P0452 but I don’t think they’re related to my question. The engine makes a squealing sound (like a worn fan belt) when accelerating while driving, or when advancing the throttle when in…
• please help code p1166 p0341 p0141
  we did the clutch on a 02 rsx type s it has bout 60000 miles after every thing was back wee started it and it idled funny then it turned off we ran the obd 2 on it and got this code of it p1166 p0341 p0141 i cant feagure out whats wrong any suggestions will help thank you…
• 2021 VW GLI P0016, P0341, and U0121
  We have a 2021 VW GLI and it won’t start. It cranks but doesn’t fire. I scanned it and got codes P0016, P0341, and U0121. It’s a leased car with only a power train warranty. I’ve tried googling for a camshaft sensor and keep getting 2 different types. It’s a gas engine and turbocharged. Any suggesti…

Symptoms

The car will likely run with this code set, as it is often intermittent and
also because the PCM can often operate the vehicle in “limp-in/limp-home”
mode even with a cam sensor signal problem. There may be no noticeable symptoms
other than:

• Poor fuel economy (if engine runs)
• Possible no start condition

What does that mean?

This diagnostic trouble code (DTC) is a generic powertrain code, which means that it applies to OBD-II equipped vehicles. Although generic, the specific repair steps may vary depending on make/model.

This P0341 code basically means that the powertrain control module (PCM) detected
a problem with the camshaft signal.

The camshaft position sensor (CPS) sends
a specific signal to the PCM for Top Dead Center on the compression stroke as
well as signals indicating the position of the cam sensor. This is accomplished
through a reluctor wheel attached to the camshaft that passes by the cam sensor.

Датчик положения распределительного вала, выход сигнала из допустимого диапазона

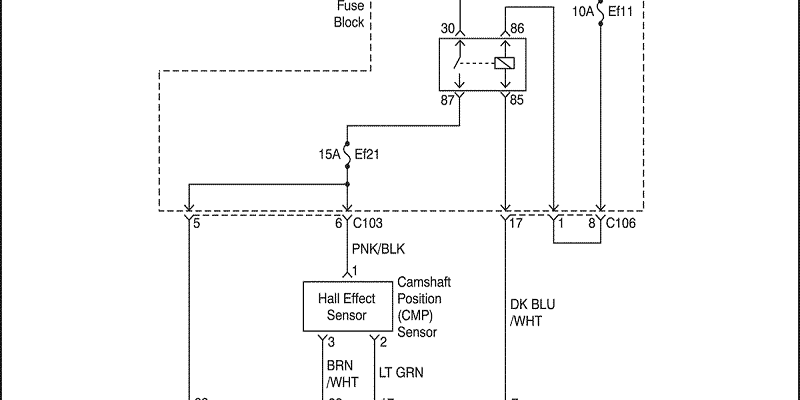

Описание схемы

Датчик положения распределительного вала (СМР) используется для определения положения распределительного вала, а также для взаимосвязи с положением коленчатого вала, для того, чтобы контроллер ЭСУД мог определить, в какой цилиндр форсунке подавать топливо.

Условия появления кода DTC

Условия установки кода неисправности

• Нет передачи сигнала датчика СМР между зубьями 25 и 33 и изменения полярности.

Действия, выполняемые при установке кода неисправности

• Контрольная лампа индикации неисправности загорается.
• Контроллер записывает рабочие условия в момент определения неисправности. Эта информация сохраняется в буфере записей состояния и протоколах неисправностей.
• Сохраняется архив диагностических кодов неисправности.

Условия очистки кода неисправности/индикации неисправности

• Лампа индикации неисправности выключается по окончании трех циклов проверки подряд, при которых диагностика выполняется без сбоя.
• Архивный диагностический код неисправности убирается после 40 циклов нагрева без сбоя.
• Диагностический код неисправности может быть очищен сканирующим прибором.

Диагностическая информация

Перед использованием диагностической таблицы проверить и устранить любой необычный шум двигателя.

Любая цепь, подозреваемая на создание шума двигателя, должна быть тщательно проверена на следующие обстоятельства:

• Снятые клеммы
• Соединение клемм
• Неисправность замков
• Деформированность
• Повреждения клемм
• Слабое соединение клемм с проводами
• Физическое повреждение жгутов проводов

DTC P0341 Датчик положения распределительного вала, выход сигнала из допустимого диапазона
